Smart Distro Touring Panel

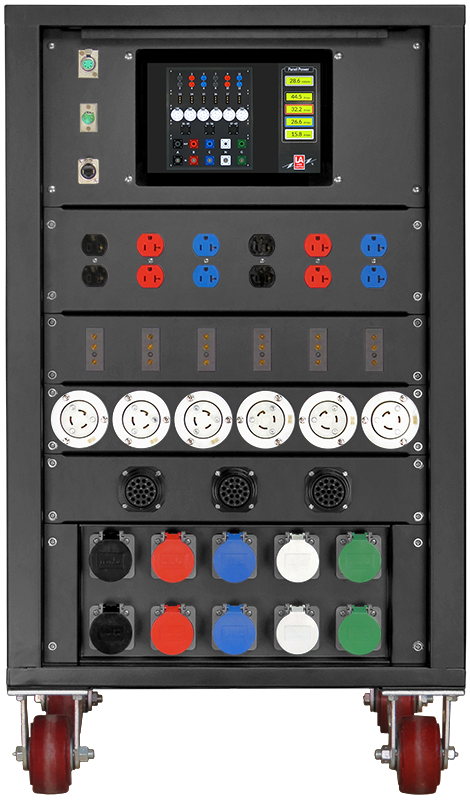

  • Distro Panel with Connector Options

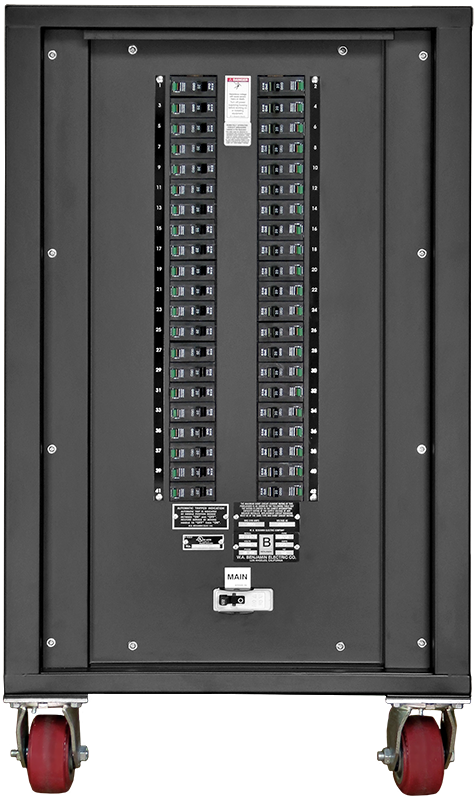

  • Distro Panel with Controllable Breakers
  • Remote Monitoring with Tablet Support

Description

Revolutionizing audio and LED lighting Power Distribution for touring theatrical and concert entertainment applications.

Features

  • Remote Controllable through DMX-512
  • Metering on Mains(standard) and Circuits(optional)
  • Touchscreen for monitoring and control
  • Breakers turn on sequentially to reduce in-rush current impacts from LED driver loads

Connectors*



  • input and pass-through, single or double neutrals


  • SL419 Compatible
    120V and 208V


  • 120V and 208V


  • 120V and 208V


  • optional GFI protection
*Customer specified connectors available upon request

Specifications

Voltage Ratings 120/240V 1Ø 3W 208Y/120V 3Ø 4W 480Y/277V 3Ø 4W
AIC Ratings 65kAIC@240V Fully Rated to 100kAIC Series Rated
14kAIC@480Y/277V Fully Rated to 65kAIC Series Rated
Branch Circuit Breaker Options 1 Pole Ratings: 15A, 20A, 30A Controlled, 15A to 100A non-controlled
2 Pole Ratings: 15A, 20A, 30A Controlled, 15A to 100A non-controlled
3 Pole Ratings: 15A to 100A non-controlled
Mains Configurations Lugs Ratings: 1100A, 225A, 400A, and 600A Rated
Connectors*: Cam-Lok™ Single Pole Connectors
Breaker 60 Amps to 600 Amps
*Customer specified connectors available upon request
Power Measurement Mains Current Accuracy 1% of reading from 1% to 100% of nominal rated current
Mains Voltage Accuracy 0.5% of reading from 90 to 600 VAC Line to Neutral
Mains Power Data Voltage, Current, Watts, PF, VA, VAR, HZ, WHrs, VAHrs, VARHrs
Branch Current Accuracy 1% of reading from 0.15 Amps to 100 Amps
Branch Circuit Data Current, Watts, PF, VA, VAR, WattHrs, VAHrs, VARHrs
Data Update Rate 1 second for all real-time values
Communications DMX-512, Modbus 485, Modbus TCP/IP, Bacnet IP, Web Server
